V Type Filter
V Type Filter

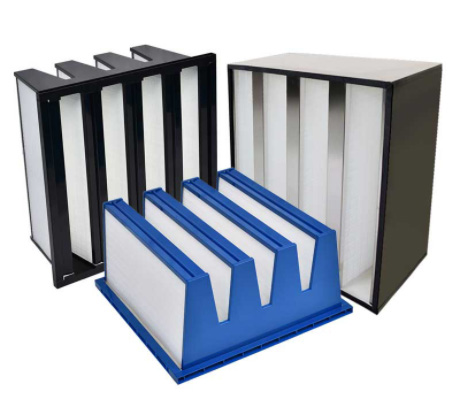

V Shape Panel Filter is a compact, vertically pleated high-efficiency EPA filter used in turbomachinery and gas turbine air intake systems where low operational pressure drop and reliability are important.

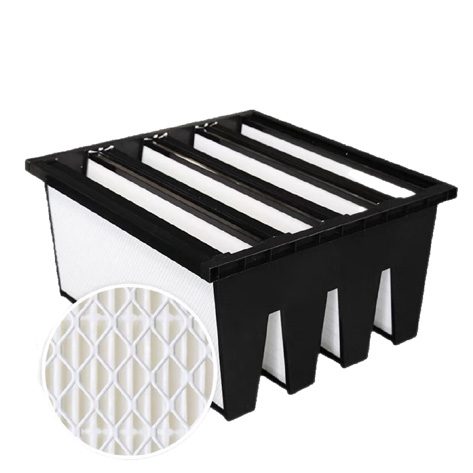

• The construction of V Shape Panel Filter feature vertical pleats with hot-melt separators for drainage. The hydrophobic filter media packs are bonded to the inner surface of a robust plastic frame that features double sealing to eliminate bypass. A reinforced frame with a solid header ensures 100% leak-free performance. The vertical pleats and open separators allow trapped water to drain freely from the filter during operation, thus avoiding re-entrainment of dissolved impurities and maintaining low pressure drop under wet and high humidity conditions.
- Each filter grade is individually optimized for lowest pressure drop and maximum life. A polyurethane gasket is permanently fixed to the filter frame, limiting the risk of filter leakage during installation.
- The V Shape Panel Filter filters eliminate bypass air, extend turbine life, prevent fouling and corrosion, reduce maintenance costs and reduce gas turbine CO2 emissions per MWh when using EPA filters. They are suitable for all installations where safety and reliability are important, including corrosive and wet/high humidity conditions.
- Filter class: F7 – H13
V Shape Panel Filter filters are tested for efficiency in accordance with the latest standard for air filters including EN 779:2012, ASHRAE 52.2:2017, ISO 16890:2016 and EN1822:2019.
Application
All installations where safety/reliability is important. All installations with high humidity/heavy rain
Filter Frame: Plastic molded, ABS
Media : High qulity fibre or glass-fibre paper
Relative Humidity : 100%
Recommended final pressure drop: 600 Pa
Separator: Hot-melt
Gasket: Polyurethane, endless foamed
Grille, Downstream : Support grid for filter media
Sealant : Polyurethane
Installation options
In a separate bank, from the upstream or downstream sides. Can be close-coupled in a reverse-flow configuration

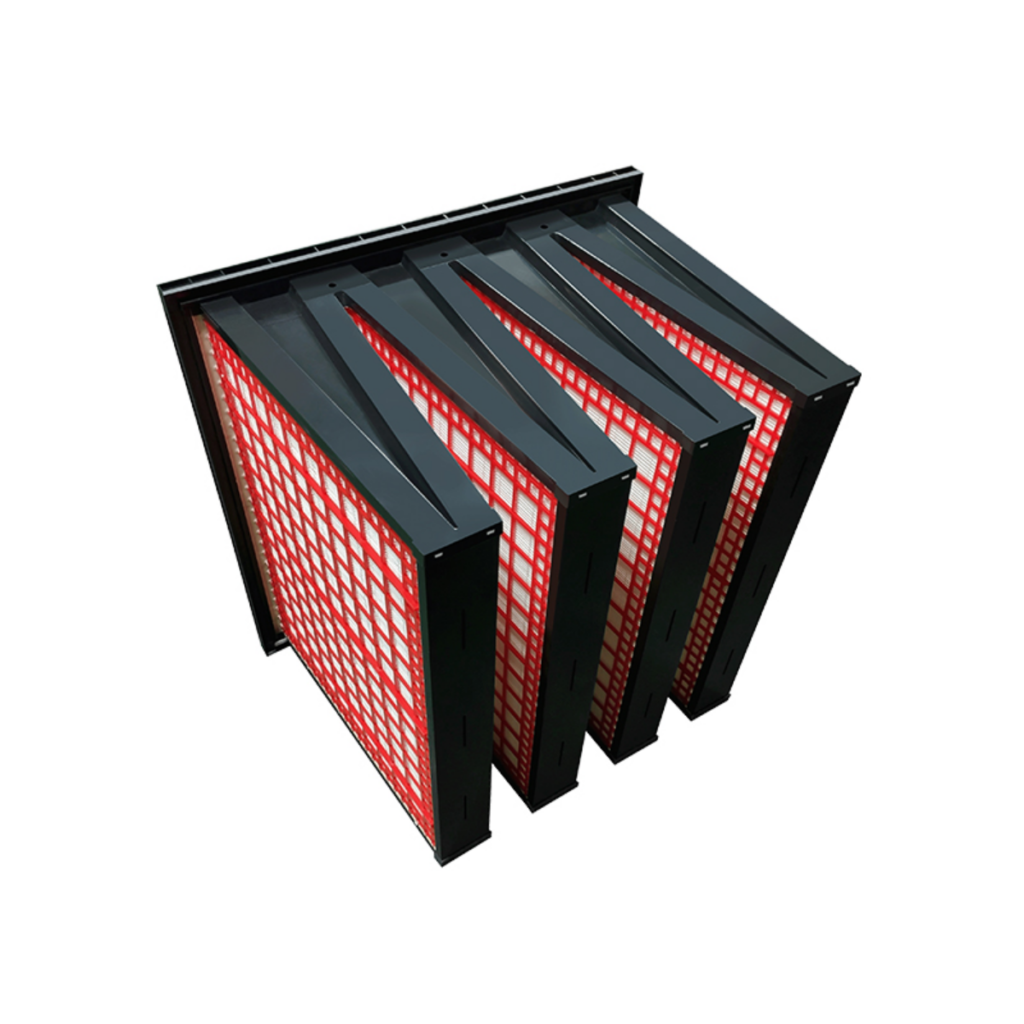

Reverse flow version: With support metal grid available on request
Max temperature (°C) 70°C
Filter Class: F6-F9 (According to EN779 Standard) H11-H13 (According to EN1822 Standard)
Spacification
| MODEL | SIZE (mm) | STRUCTURE | RATED AIR VOLUME | FILTER AREA | EFFICIENCY | GRADE | ||
|---|---|---|---|---|---|---|---|---|
| W | H | T | (m³/h) | (M²) | (%) | (EN779) | ||
| FLS-V1 | 592 | 287 | 292 | 4V | 1700 | 10.4 | "65%~99% 99%~99.99%" | "F6~F9 H11~H13" |
| FLS-V2 | 592 | 592 | 292 | 5V | 3400 | 20.8 | ||
| FLS-V3 | 305 | 610 | 292 | 4V | 1700 | 8.06 | ||
| FLS-V4 | 610 | 610 | 292 | 5V | 3400 | 18.26 | ||
